What makes the difference?

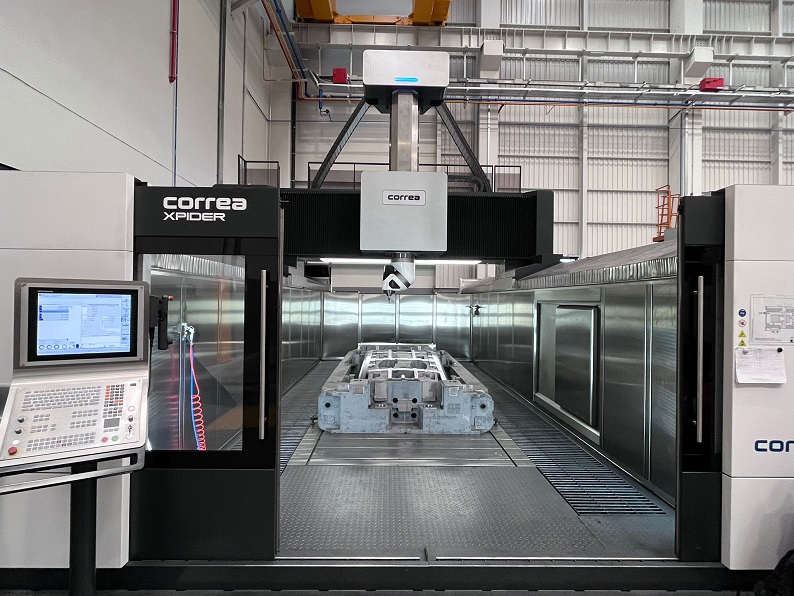

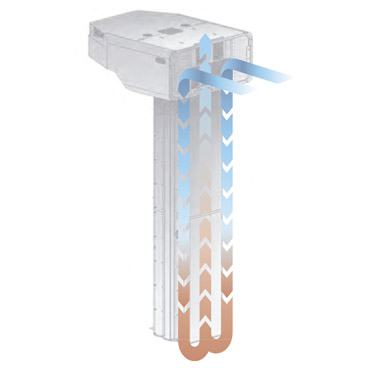

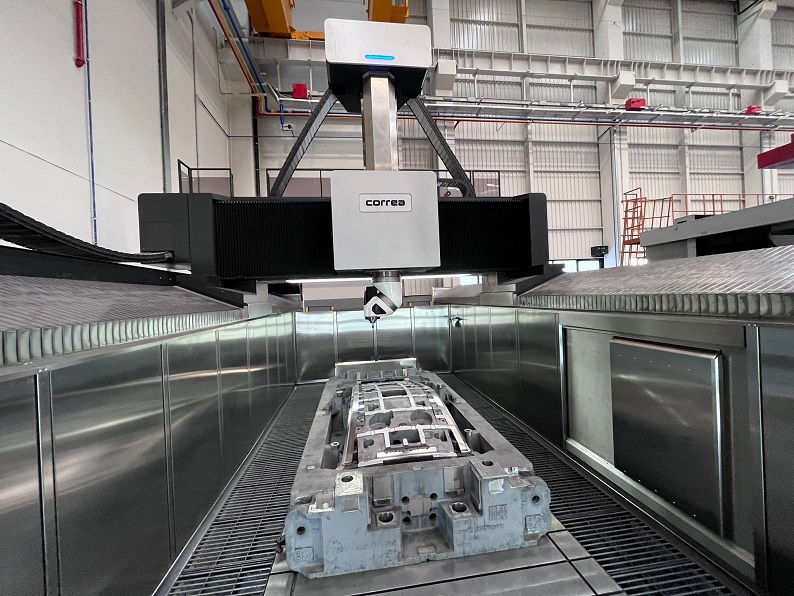

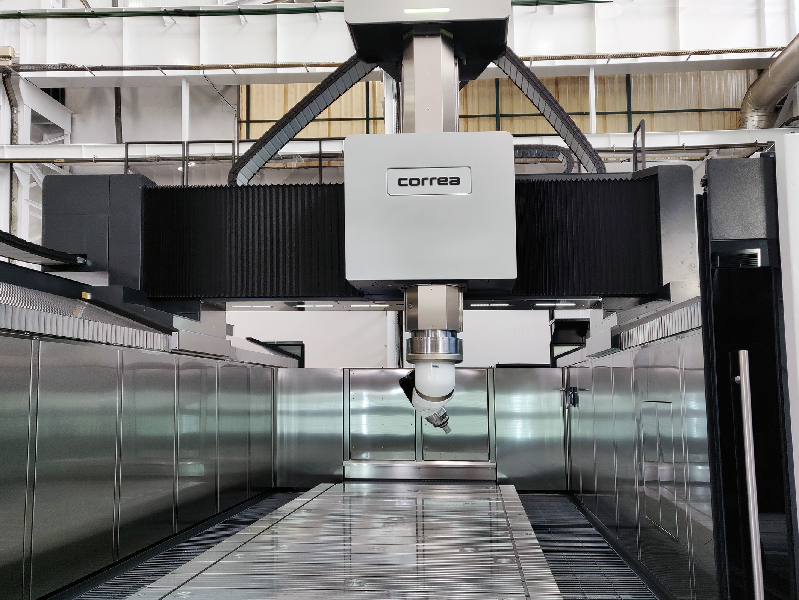

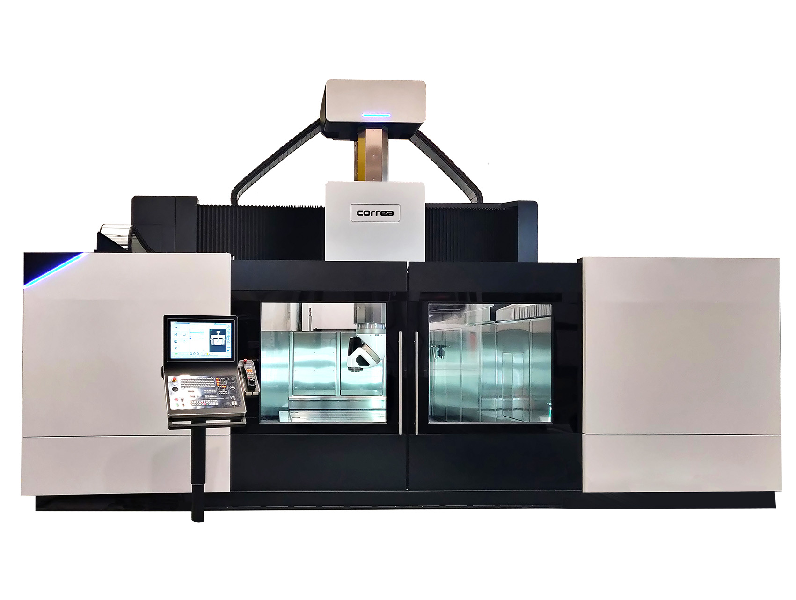

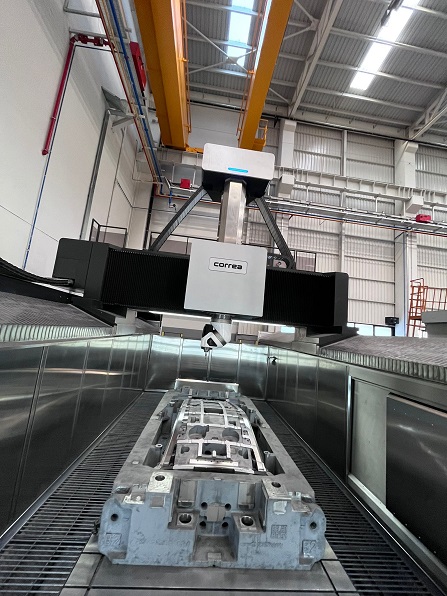

The XPIDER represents a concept of high-speed “top gantry” machine which incorporates unique structural elements and functions. Temperature stability and high speed combined in this new generation milling machine.

Technical specifications

Table
Surface mm 3.500 + 1.500N x 1.500 - 2.500
Maximum load on the table Kg / m2 10.000 / 15.000
Traverses
Longitudinal X mm 3.500 + 1.500N
Cross Y mm 2.000 3.000
Vertical X mm 1.000 - 1.500
Working capacity
Distance between columns mm 3.000 4.000
Feeds
Maximum X m/min 45 / 60
Y m/min 45 / 60
Z m/min 45 / 45
Spindle specifications
Taper   ISO-50 / HSK-63 / HSK-100
Programmable speed rpm 6.000 / 12.000 / 24.000
Maximum power kW 30 / 35* / 60*

*Solo con cabezal E5E (Electromandrino)

Standard and optional equipment

Standard equipment

  • Five-axes twist drill head equipped with electrospindle
  • Numerical control Heidenhain or Siemens (Operate HMI)
  • Portable handwheel
  • Air-conditioned electrical cabinet
  • Linear guides in the X, Y and Z axes
  • Lamp in the working area
  • Hydraulic and cooling group
  • Linear scales in all axes
  • External Coolant with adjustable nozzles
  • Internal and external air flow
  • Guarding
  • Tele-service

Optional equipment

  • Other heads
  • Automatic head-changer
  • Tool and parts measurement probes
  • Automatic changer for 30, 40, 60, 120 tools
  • Pick up station for 6, 8, 12 tools
  • Air/Coolant cleaning gun
  • Self-cleaning filter
  • Rotary tables
  • Chip conveyors
  • Different guarding according to user’s needs (only in some models)
  • Coolant through spindle 17, 36, 70 bar
  • Zero Point Clamping System integrated in the machine
