What makes the difference?
The NORMA represents a new concept of bed type, lateral ram machine. Very sturdy
thanks to structural elements with large sections together with an L-shaped ram guide system.
A high precision thanks to the mechanical ram droop correction system. A flexible machine
suitable for machining and finishing operations.
-
![Eco Design]()
![Eco Design]()
Eco Design
Stand-by function and Auto Switch off function, saving 20% of the total energy machine consumption.
-
![High Feed Rates]()
![High Feed Rates]()
High Feed Rates
25 m/min in X, Y and Z axes, thanks to its V-Shaped linear guide-ways in all axes.
-
![High Geometrical Precision]()
![High Geometrical Precision]()
High Geometrical Precision
High machining capacity + Geometrical stability over time.
![High Geometrical Precision]()
High Geometrical Precision
High machining capacity + Geometrical stability over time.
-
![L Guide-way System Configuration]()
![L Guide-way System Configuration]()
L Guide-way System Configuration

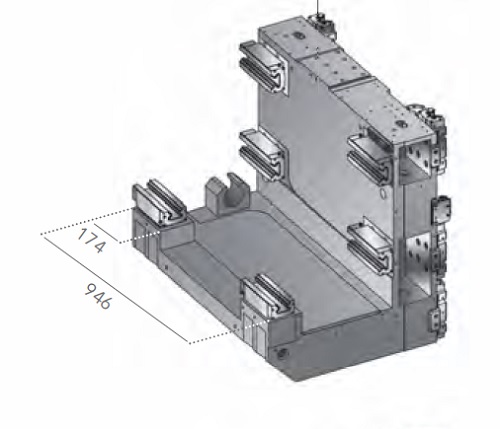

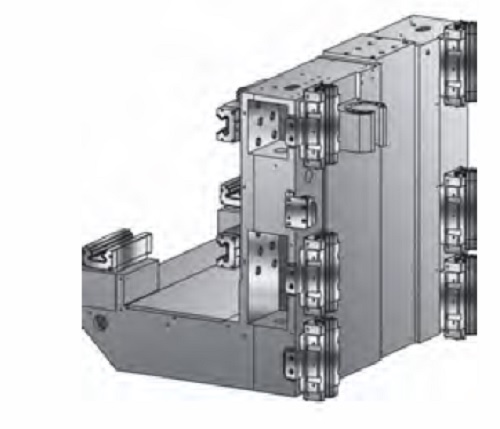

L-shaped guide system:
- Greater rigidity and stability during machining.
- Greater geometrical precision.
- Less ram droop effect.
6 vertical movement sliders ensuring good machine behaviour.
![L Guide-way System Configuration]()
L Guide-way System Configuration
L-shaped guide system:
- Greater rigidity and stability during machining.
- Greater geometrical precision.
- Less ram droop effect.
6 vertical movement sliders ensuring good machine behaviour.
-
![Mechanical Compensation System]()
![Mechanical Compensation System]()
Mechanical Compensation System

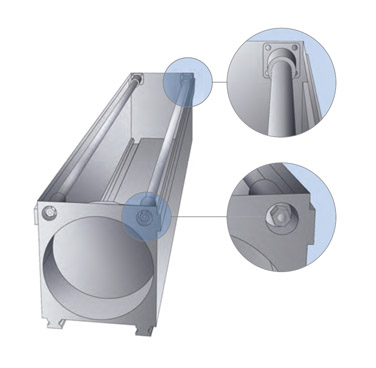

Pulling bars for fine tuning adjustment of ram droop effect.
-
![Oversized Structural Elements]()
![Oversized Structural Elements]()
Oversized Structural Elements

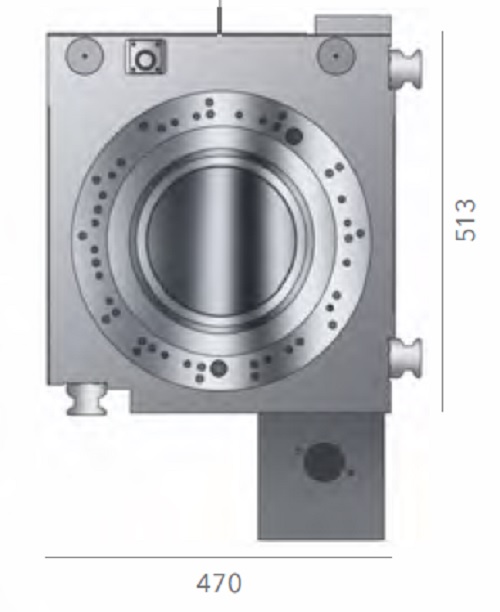

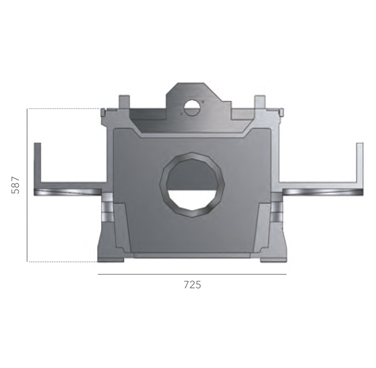

The largest cross-sections on the market.
![Oversized Structural Elements]()
Oversized Structural Elements
The largest cross-sections on the market.
-
![Multi-Function Operation]()
-
![Machine Dynamic Adjustment]()
![Machine Dynamic Adjustment]()
Machine Dynamic Adjustment
Dynamic performance parametrizable in accordance with:
- ROUGHING OPERATION
- FINISHING OPERATION
2.jpg)
3.jpg)
Technical specifications
| 20 | 25 | 35 | 45 | ||||
|---|---|---|---|---|---|---|---|
| Table | |||||||
| Surface | mm | 2.300 x 1.000/1.250 | 2.800 x 1.000/1.250 | 3.800 x 1.000/1.250 | 4.800 x 1.000/1.250 | ||
| Maximum load on the table | kg | 4,500 | 6,500 | 8,500 | 10,500 | ||
| Traverses | |||||||
| Longitudinal | X mm | 2,000 | 2,500 | 3,500 | 4,500 | ||
| Cross | Y mm | 1,250 / 1,500 | |||||
| Vertical | Z mm | 1,500 / 2,000 | |||||
| Feeds | |||||||
| Maximum | X m/min | 30 | |||||
| Y m/min | 30 | ||||||
| Z m/min | 30 | ||||||
| Spindle specifications | |||||||
| Taper | ISO-50 Big Plus/HSK-100 | ||||||
| Programmable speed | rpm | 4,000/6,000/10,000 | |||||
| Maximum power | kW | 24 - 33 - 30 | |||||
| Maximum torque | Nm | 840 - 990 - 620 | |||||
| Weight | |||||||
| Machine weight | kg | 17.800 | 19.000 | 21.200 | 24.000 | ||
Heads
UAD Technology
Universal and orthogonal indexing milling heads unique in the market. Patented technology allowing rotation every 0,02º.
5 axes Technology.
2 axes contouring head "Twist" type with built in electrospindle or spindle geared transmission.
Are you interested in our heads?
Standard and optional equipment
Standard equipment
- Automatic Universal Head
- Numerical control Heidenhain or Siemens
- Portable handwheel
- Air-conditioned electrical cabinet
- Linear guides in the X, Y and Z axes
- Lamp in the working area
- Gearbox
- Hydraulic group
- Linear scales in all axes
- External Coolant with adjustable nozzles in the head
- Perimeter fence
- Direct Tele-service
- VIXION 4.0
Optional equipment
- Other heads
- Probes of measurement, tools and parts
- Automatic charger for 30, 40 and 60 tools
- Pick up station for 8 tools
- Air or oil cleaning gun with motor pump
- Centrifugal filter in cutting fluid tank
- Rotary tables
- Chip conveyors
- Integral guarding
- Basic guarding
- Coolant through spindle to high and medium pressure
