What makes the difference?

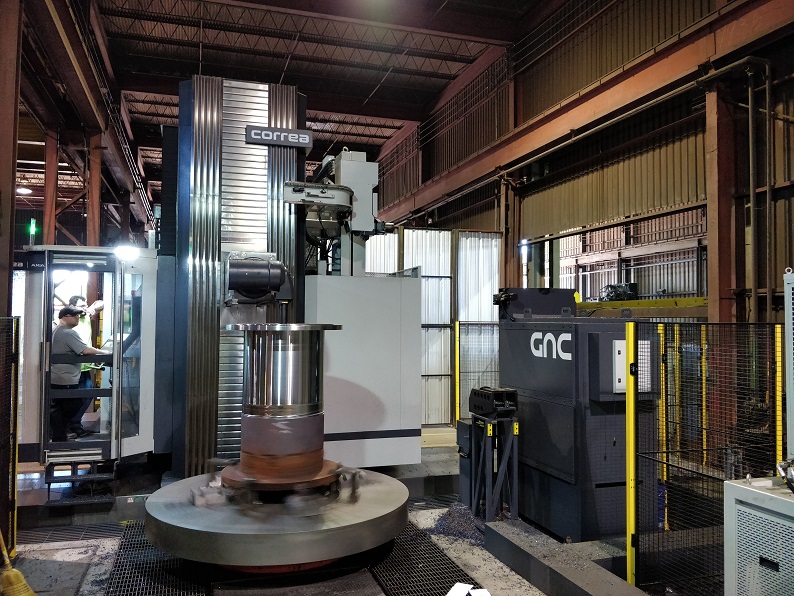

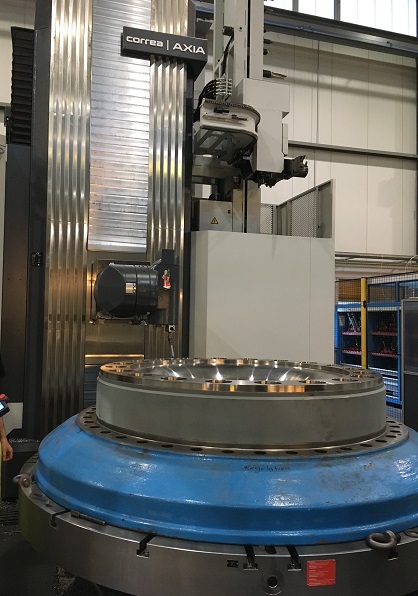

correa multitasking machine AXIA combines several cutting processes on one machine. These machines offer the manufacturing capabilities of milling and turning machines into one integrated unit to use the functionality of both simultaneously.
Technical specifications

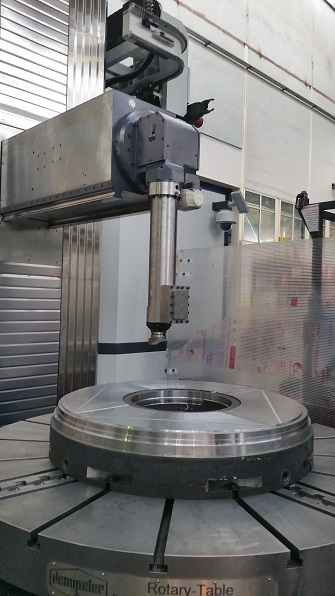

| Turning table | |||||||
|---|---|---|---|---|---|---|---|
| Diameter | Ø mm | 1,600 - 3,000 | |||||
| Maximum load on the table | Tm | 6 - 60 | |||||
| Speed | rpm | 100 - 250 | |||||
| Traverses | |||||||
| Longitudinal | X mm | 4,000 - 25,000 | |||||
| Cross | Y mm | 1,500 / 1,750 | |||||
| Vertical | Z mm | 2,500 / 3,000 / 4,000 | |||||
| Feeds | |||||||
| Maximum | X m/min | 30 / 40 | |||||
| Y m/min | 30 / 40 | ||||||
| Z m/min | 30 / 40 | ||||||
| Spindle specifications | |||||||
| Taper | ISO-50 Big Plus / HSK-100 / Capto C8 | ||||||
| Programmable speed | rpm | 6,000 / 10,000 | |||||
| Maximum power | kW | 37 / 52 / 42 | |||||
| Maximum torque | Nm | 1,300 / 1,375 / 620 | |||||
Heads
UAD Technology

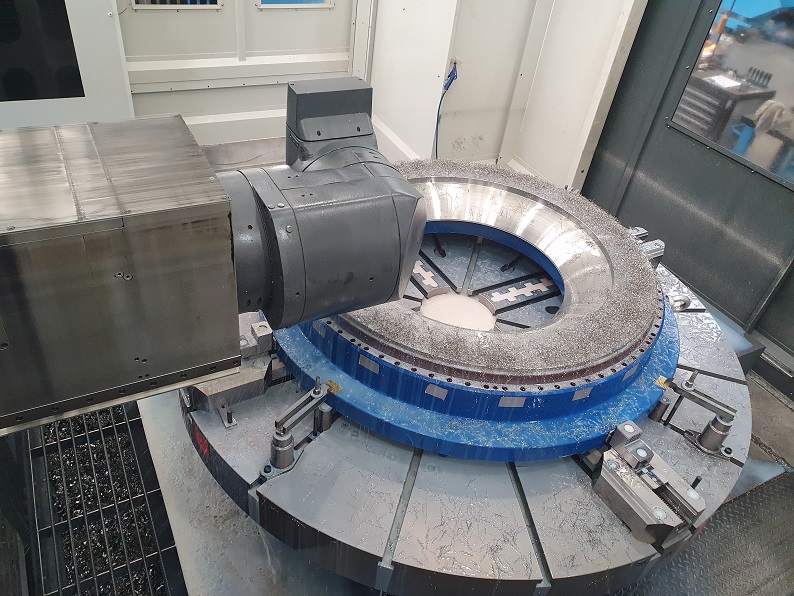

Universal and orthogonal indexing milling heads unique in the market. Patented technology allowing rotation every 0,02º.
5 axes Technology.
2 axes contouring head "Twist" type with built in electrospindle or spindle geared transmission.
Are you interested in our heads?
Standard and optional equipment
Standard equipment
- Automatic Universal Head
- Numerical control Heidenhain or Siemens (Operate HMI)
- Portable handwheel
- Air-conditioned electrical cabinet
- Linear guides in the X, Y and Z axes
- Lamp in the working area
- Hydraulic and cooling group
- Linear scales in all axes
- External Coolant with adjustable nozzles in the head
- Internal and external air flow
- Guarding
- Tele-service
- VIXION 4.0
